Example PTP Instance Configurations

The following sections provide example configuration steps for two configurations supported by .

• The first is a Border Clock setup where an external is providing a time source for the system. Only ptp4l and phc2sys are used for this configuration.
• The second shows how to setup a node when a time source is available via a locally connected GNSS signal. The ptp4l, phc2sys, ts2phc and clock instance types are used for this configuration.

Simple PTP configuration - T-BC

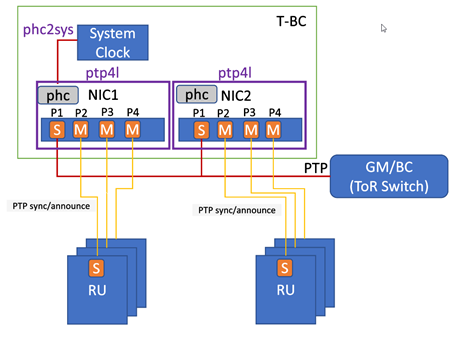

Using the topology shown, the following examples provide configurations for each service type:

T-BC configuration

ptp4l

1. Create the instance.

   ~(keystone_admin)]$ system ptp-instance-add ptp-inst1 ptp4l

2. Create a inteface for the instance.

   ~(keystone_admin)]$ system ptp-interface-add ptp-iface1 ptp-inst1

3. Assign host interfaces to the interface.

   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if0 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if1 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if2 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if3 ptp-iface1

   Note

   The if0-if3 field should be a name listed by the system host-if-list <hostname> -a command.

4. Additionally, assign ports for the second NIC.

   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if4 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if5 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if6 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if7 ptp-iface1

   Note

   The if0-if3 field should be a name listed by the system host-if-list <hostname> -a command.

5. Add a parameter to the instance (e.g. domainNumber=24). Additional parameters can be added for other functionality.

   ~(keystone_admin)]$ system ptp-instance-parameter-add ptp-inst1 domainNumber=24

6. Assign the instance to controller-0.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 ptp-inst1

7. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply

phc2sys

1. Create the instance.

   ~(keystone_admin)]$ system ptp-instance-add phc-inst1 phc2sys

2. Create a interface for the instance.

   ~(keystone_admin)]$ system ptp-interface-add phc-iface1 phc-inst1

3. Assign host interface(s) to the interface.

   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if0 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if1 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if2 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if3 phc-iface1

   Note

   The if0-if3 field should be a name listed by the system host-if-list <hostname> -a command.

4. Assign host interfaces from the second NIC.

   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if4 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if5 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if6 phc-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if7 phc-iface1

   Note

   The if0-if3 field should be a name listed by the system host-if-list <hostname> -a command.

5. Add the required uds_address and domainNumber parameters to the instance.

   ~(keystone_admin)]$ system ptp-instance-parameter-add phc-inst1 uds_address=/var/run/ptp4l-ptp-inst1
   ~(keystone_admin)]$ system ptp-instance-parameter-add phc-inst1 domainNumber=24

   Note

   The path assigned to uds_address must use the name of the ptp4l instance that phc2sys is tracking.

6. Assign the instance to controller-0.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 phc-inst1

7. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply

Alternate PTP configuration - T-GM

Using the topology shown, the following examples provide configurations for each service type.

Dual NIC Deployment with GNSS

ts2phc

1. Create an instance.

   ~(keystone_admin)]$ system ptp-instance-add ts1 ts2phc

2. Create the interface and assign to ports.

   ~(keystone_admin)]$ system ptp-interface-add tsint1 ts1

   # This is the port/PHC that we want to sync to GNSS time stamps, could be multiple PHCs if required
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 oam0 tsint1

   # Assign a port on the second nic as well
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 data0 tsint1

   This value is the path to the GNSS serial port that is connected, will vary system to system
   ~(keystone_admin)]$ system ptp-instance-parameter-add ts1 ts2phc.nmea_serialport=/dev/ttyGNSS_BBDD_0

3. Assign the instance to a host.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 ts1

4. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply

phc2sys

1. Add the instance.

   ~(keystone_admin)]$ system ptp-instance-add phc-inst1 phc2sys

2. Use the interface name that is being synced with ts2phc above.

   For example, if oam0 is on ens1f0, use ens1f0 below.

   ~(keystone_admin)]$ cmdline_opts='-w -s <port_name>'

3. Add the required uds_address and domainNumber parameters to the instance.

   $ system ptp-instance-parameter-add phc-inst1 uds_address=/var/run/ptp4l-ptp-inst1
   $ system ptp-instance-parameter-add phc-inst1 domainNumber=24

   Note

   The path assigned to uds_address must use the name of the ptp4l instance that phc2sys is tracking.

4. Assign the instance to a host.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 phc-inst1

5. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply

ptp4l

Note

You must create a second instance for the second NIC and repeat this process.

1. Create instance.

   ~(keystone_admin)]$ system ptp-instance-add ptp-inst1 ptp4l

2. Create an interface for the instance.

   ~(keystone_admin)]$ system ptp-interface-add ptp-iface1 ptp-inst1

3. Assign ports to the interface.

   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if0 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if1 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if2 ptp-iface1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 if3 ptp-iface1

4. Add parameters to the instance.

   ~(keystone_admin)]$ system ptp-instance-parameter-add ptp-inst1 domainNumber=24

5. If configuring a node, set the special ptp4l parameter currentUtcOffsetValid=1.

   This allows the local clock and all downstream clocks to use the announced UTC offset.

   $ system ptp-instance-parameter-add ptp-inst1 currentUtcOffsetValid=1

6. Assign the instance to controller-0.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 ptp-inst1

7. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply

clock

Note

These parameters are used to enable the UFL/SMA ports, recovered clock syncE, and so-on. Refer to the user's guide for the Westport Channel NIC for additional details on how to operate these cards.

The following parameters can be applied to the interface of a clock instance:

• sma1 input/output
• sma2 input/output
• u.fl1 output
• u.fl2 input
• synce_rclka enabled
• synce_rclkb enabled

1. Create the instance.

   ~(keystone_admin)]$ system ptp-instance-add cl1 clock

2. Create a interface and assign host interfaces to it.

   ~(keystone_admin)]$ system ptp-interface-add clint1 cl1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 oam0 clint1

   The parameters are ultimately applied to the whole NIC, so adding multiple interface from the same NIC will override each other. The exception is the synce_rclk params, which are specific to the individual port.

3. Add interface parameters.

   ~(keystone_admin)]$ system ptp-interface-parameter-add clint1 sma1=output synce_rclka=enabled

4. Assign the instance to a host.

   ~(keystone_admin)]$ system host-ptp-instance-assign controller-0 cl1

5. Create a second clock interface to take input on the sma1 port in order to pass GNSS data to the second NIC.

6. Create a interface and assign host interfaces to it.

   ~(keystone_admin)]$ system ptp-interface-add clint2 cl1
   ~(keystone_admin)]$ system host-if-ptp-assign controller-0 data0 clint2

7. Add interface parameters.

   ~(keystone_admin)]$ system ptp-interface-parameter-add clint2 sma1=input synce_rclka=enabled

8. Apply the configuration.

   ~(keystone_admin)]$ system ptp-instance-apply
